Dual Plate Check Valve

The Honeywell WFS6000 Water Flow Switch paddle type SPDT WFS series have been designed to offer excellent performance, particularly in applications where accuracy, reliability, and rugged construction are necessary. The intended use of the WFS series is on liquid flow lines carrying water or any fluid that is neither harmful to brass and phosphor bronze nor classified as a hazardous fluid. It is possible to wire them to close one circuit and open a second circuit when liquid flow either exceeds or drops below the adjusted flow rate. The recommended use of the WFS series is for liquid pressure and temperature as specified below. Not recommended to use the WFS series on lines carrying liquids below 0°C, as it is crucial to avoid. It is acceptable to use these series on liquids with high salt or chlorine content, but they are not suitable for use in hazardous atmospheres. In order to ensure their proper functioning while using them outdoors, it is necessary to protect WFS flow switches from weather or splashing water. The designers have designed WFS flow switches solely for use as operating controls. Where an operating control failure would result in personal injury and/or loss of property, it is the responsibility of user to add safety devices that protect against, or supervisory systems that warn of control failure. Product Details: Product Description Usage/Application Detect Water Flow Model Number WFS6000 Brand Honeywell Switching Current 10 Amps Operating Pressure 10 kgf/cm² Insulation Resistence Over 100 ohm , DC500VM Material Brass Flow Media Type Liquid Contact Point Life 1000K Cycle Temperature of Fluid Max 100°C Current Rating 5 A Mounting Options 1 inch thread Withstand Pressure 17.5Kgf/cm²

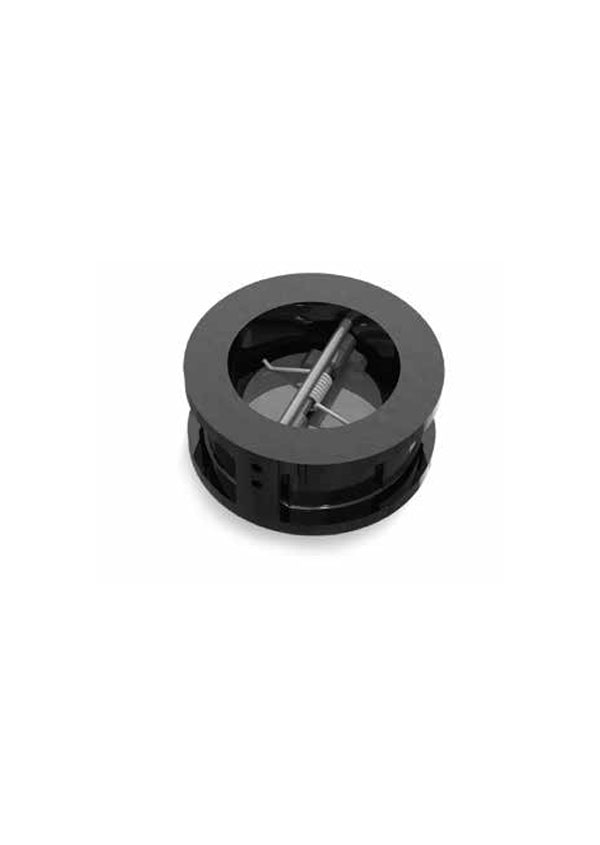

A Dual Plate Check Valve" from Honeywell is a type of valve that allows fluid to flow in one direction only, preventing backflow, by utilizing two spring-loaded plates that quickly close against each other when pressure reverses, offering a reliable and efficient way to protect systems from potential damage caused by backflow; essentially, it's a "non-return valve" with a faster closing mechanism compared to a single plate design. Salient Features: Model Number: DPCV-IMP-PN16 Sizes Available : 50mm - 600mm Cast Iron / Ductile Iron Body with DI or SS Disc Wafer Type Design, to take lesser space than the conventional Check Valve. Less Wear and Tear of Seat Surfaces Being cylindrical body, stresses are uniformly distributed Much longer Seat life because of Ductile Iron / S.S. to Rubber Contact Water hammering effect is minimized in this design, since the closing of valve does not depend on any back pressure or flow End connections are designed to suit flanges drilled to ISO: 7005-2, IS 1538, ANSI B Class-125, Class-150, Table 'D' and Table 'E' Specifications: Sizes DN50 - DN600 Medium Type Water Medium Temprature -10°C ~ +110°C Max. Nominal Pressure PN16 Test Pressure (Hydrostatic) Shell Test 24 Bar Seat Test 17.6 Bar Suitable Insertion ISO: 7005-2, IS 1538, ANSI B Class-125 / ASME B Class- 150, Table ‘D’ and Table ‘E’
