Description

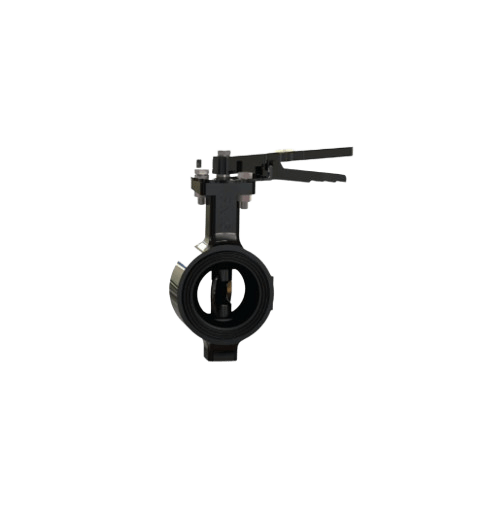

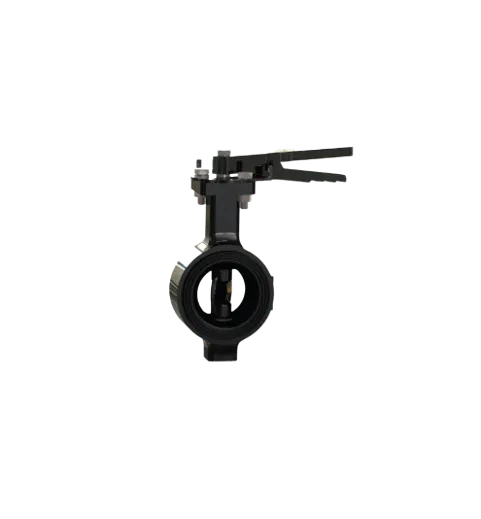

A Honeywell Impact butterfly valve PN 16 is typically used for regulating the flow of water in heating and cooling systems, particularly in HVAC applications, due to its design for handling both hot and chilled water, with the "PN 16" indicating its pressure rating suitable for moderate pressure applications; it can be used in potable water systems as well.
Product Salient Features:
Model Number - BFH-IMP-PN16
Sizes Available from 40mm - 300mm
It's Operated by Hand Lever/Quarter Turn Lever
It's Ductile Iron Disc
It has No Visible Leakage.
Body liner will be renewable type for size upto DN150 and molded rubber
EPDM type for size DN200 and above
Compatible to sandwich between flanges as per ISO7005-1
Product Specifications:
Size Range - DN40 - DN300
Body Material - Upto DN250-Cast Iron/DN300-Ductile Iron
Test Pressure (Hydrostatic)
Shell - 24 Bar
Seat - 17.6Bar
Maximum Working Temperature - (-10°C to 110°C)
Maximum Working Pressure - 16 Bar
Suitable for - Water
Pressure Rating - PN16
