Description

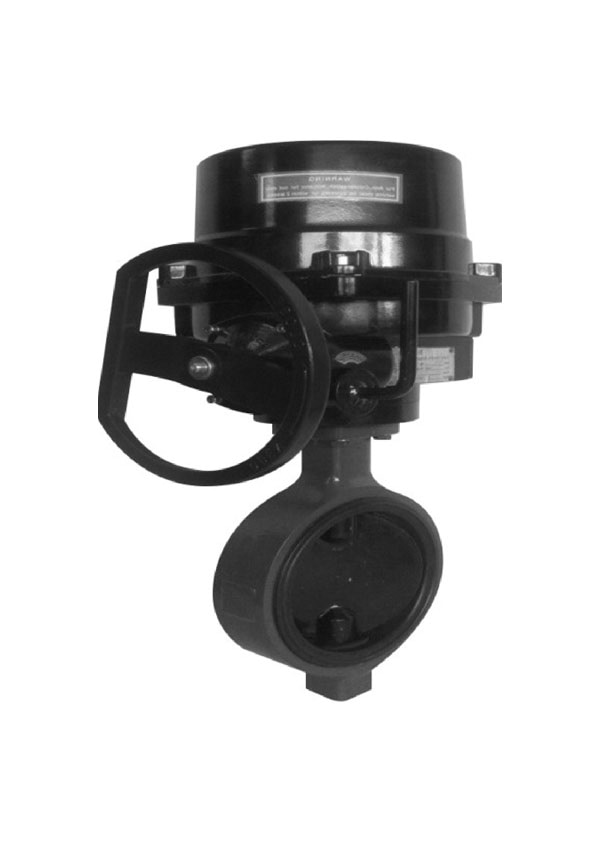

A Honeywell Impact butterfly valve PN 16 is typically used for regulating the flow of water in heating and cooling systems, particularly in HVAC applications, due to its design for handling both hot and chilled water, with the "PN 16" indicating its pressure rating suitable for moderate pressure applications; it can be used in potable water systems as well. Salient Features: Model Number: BFM-IMP-PN16 Sizes Available : 50mm - 600mm Design Standard IS 13095 / BS EN 593 (BS 5155) Wafer Type Electrical Acuator Operated ON/FF and Modulating type actuation control Cast Iron / Ductile Iron construction. Stainless Steel (SS304) Disc Compatible with B.M.S (Building Management System) IP 67 protection available for outdoor application Anti-condensation space heater available in the actuator Input Voltage – 230+/-10% VAC 50/60 Hz power supply Till size 200mm Liner will be renewable & above 200mm Body molded rubber (EPDM) Compatible to sandwich between flanges as per ISO7005-1 (GB/T 9113) /IS 1538 (B16.5#150)1092-2 Specifications: VALVE Size Range DN50 - DN600 Suitable for Water Medium Temp -10°C to 110°C Nominal Pressure PN16 ACTUATOR Power Supply 220Vac, 50/60 Hz Travel Angle 90º ± 5º Feedback 2 Aux Switches Enclosure IP67 Waterproof Ambient Temperature -10°C to +65°C Indicator Continuous Position Indicator with manual override Worm Gear Permanently lubricated and self-locking Material Aluminum Alloy External Coating Dry Powder Coating Test Pressure (Hydrostatic) Shell Test 24 Bar Seat Test 17.6 Bar
