Description

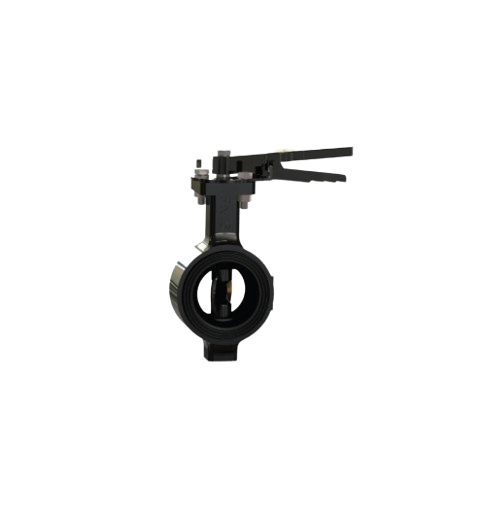

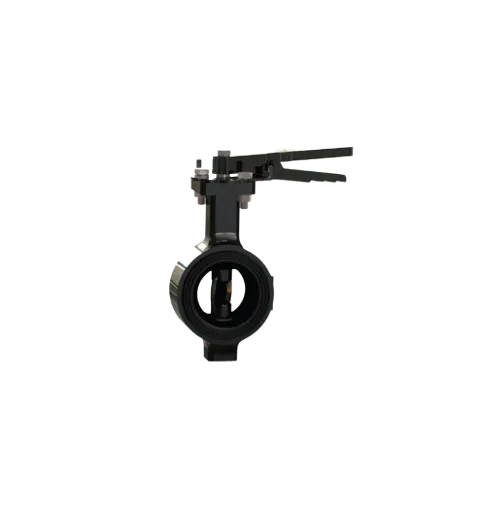

A Honeywell Impact butterfly valve PN 16 is typically used for regulating the flow of water in heating and cooling systems, particularly in HVAC applications, due to its design for handling both hot and chilled water, with the "PN 16" indicating its pressure rating suitable for moderate pressure applications; it can be used in potable water systems as well.
Product Salient Features:
Model Number - BFH-IMP-PN16
Sizes Available from 40mm - 300mm
It's Operated by Hand Lever / Quarter Turn Lever
It's Stainless Steel Disc
It has No Visible Leakage.
Body liner (EPDM) will be renewable type for size upto DN150 and body molded type for size DN200 and above
Compatible to sandwich between flanges as per ISO7005-1 (GB/T 9113)/IS 1538 (B16.5#150)1092-2
Product Specifications:
Size Range DN40 - DN300
Body Material
Upto DN250-Cast Iron,
DN300-Ductile Iron
Pressure Rating PN16
Test Pressure (Hydrostatic)
Shell 24 Bar
Seat 17.6Bar
Maximum Working Temperature -10°C to 110°C
Maximum Working Pressure 16 Bar
Suitable for Water
