Description

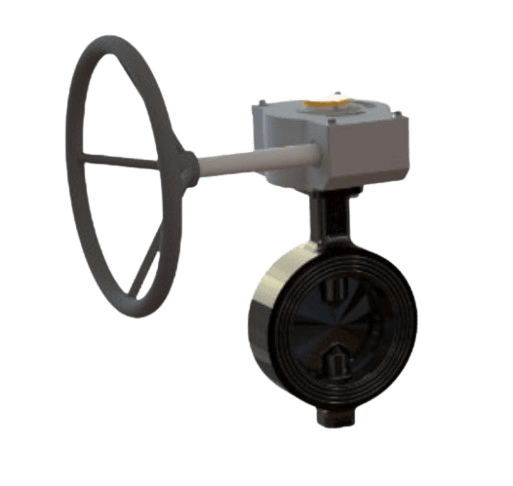

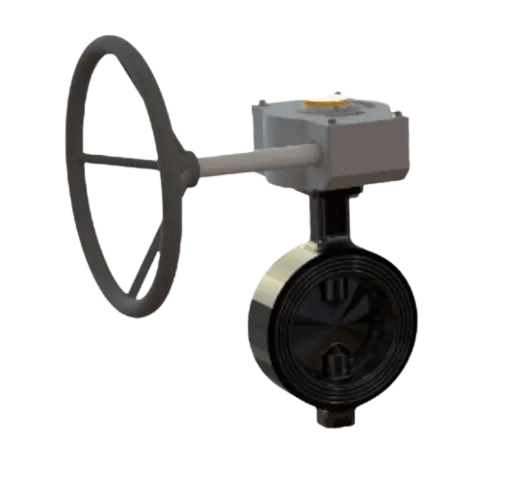

A Honeywell Impact butterfly valve PN 16 is typically used for regulating the flow of water in heating and cooling systems, particularly in HVAC applications, due to its design for handling both hot and chilled water, with the "PN 16" indicating its pressure rating suitable for moderate pressure applications; it can be used in potable water systems as well.
Product Salient Features:
Model Number - BFG-IMP-PN16
Sizes Available from 50mm - 600mm
It's Operated by Quarter Turn Gear
It's Ductile Iron Disc
It has No Visible Leakage.
Body liner (EPDM) will be renewable type for size upto DN150 and body molded type for size DN200 and above
Compatible to sandwich between flanges as per ISO7005-1 (GB/T 9113)/IS 1538 (B16.5#150)1092-2
Product Specifications:
Size Range - DN50-DN750
Nominal Pressure - PN16
Medium Temperature - (-10°C ~ +110°C Maximum)
Body Material - Upto DN250 - Cast Iron/DN300-DN750 – Ductile Iron
Stem Material - ASTM A276, GR SS 410
Leakage Rate - No visible leakage
Maximum Working Pressure - 16 Bar(PN16)
Medium Type - Water
Test Pressure (Hydrostatic)
Shell Test pressure - 24 Bar
Seal Test pressure - 17.6 Bar
