Description

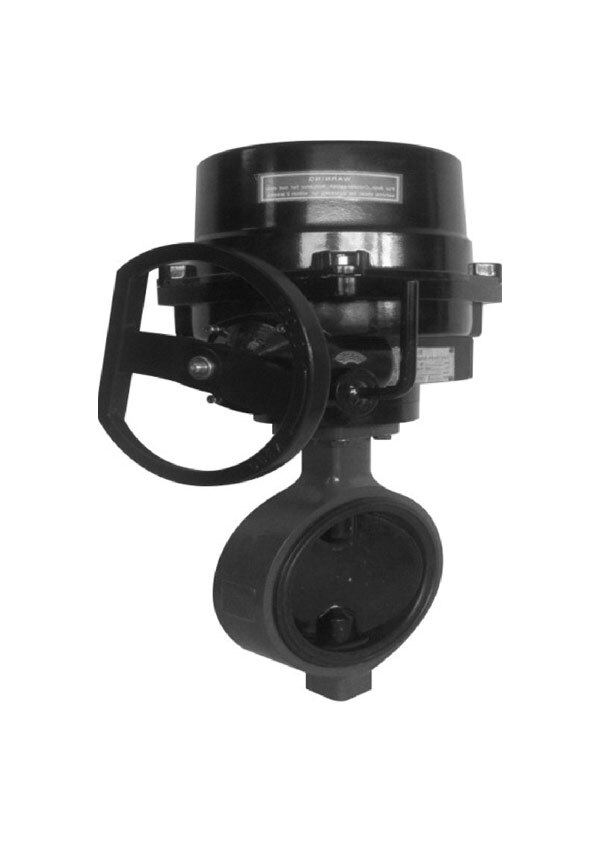

A Honeywell Impact butterfly valve PN 16 is typically used for regulating the flow of water in heating and cooling systems, particularly in HVAC applications, due to its design for handling both hot and chilled water, with the "PN 16" indicating its pressure rating suitable for moderate pressure applications; it can be used in potable water systems as well.
Salient Features:
Model Number: BFM-IMP-PN16
Sizes Available : 50mm - 600mm
Design Standard IS 13095 / BS EN 593 (BS 5155) Wafer Type
Electrical Acuator Operated
ON/FF and Modulating type actuation control Cast Iron / Ductile Iron construction.
Ductile Iron Disc
Compatible with B.M.S (Building Management System)
IP 67 protection available for outdoor application
Anti-condensation space heater available in the actuator
Input Voltage – 230+/-10% VAC 50/60 Hz power supply
Till size 200mm Liner will be renewable & above 200mm Body molded rubber (EPDM)
Compatible to sandwich between flanges as per ISO7005-1 (GB/T 9113) /IS 1538 (B16.5#150)1092-2
Specifications:
VALVE
Size Range DN50 - DN600
Suitable for Water
Medium Temp -10°C to 110°C
Nominal Pressure PN16
ACTUATOR
Power Supply 220Vac, 50/60 Hz
Travel Angle 90º ± 5º
Feedback 2 Aux Switches
Enclosure IP67 Waterproof
Ambient Temperature -10°C to +65°C
Indicator Continuous Position Indicator with manual override
Worm Gear Permanently lubricated and self-locking
Material Aluminum Alloy
External Coating Dry Powder Coating
Test Pressure (Hydrostatic)
Shell Test 24 Bar
Seat Test 17.6 Bar
